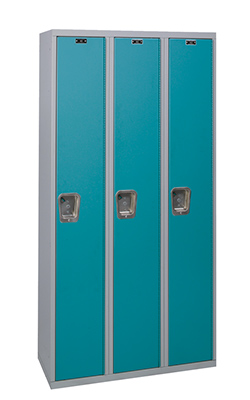

Bulldog Corridor Lockers
Our single-point all-welded corridor lockers have achieved a standard of excellence that only Art Metal Products can provide.
With the elegance of our Twin-Frame design, smooth deep drawn seamless stainless steel recessed handle, continuous piano hinge and torque-free reinforced heavy-gauge door, you can rest assured that you have chosen a locker which will enhance the architectural design of your facility while providing a lifetime of maintenance-free use.
Standard:
18 gauge continuous piano hinge
Standard:
3" wide 18 gauge full height door stiffener
Standard:

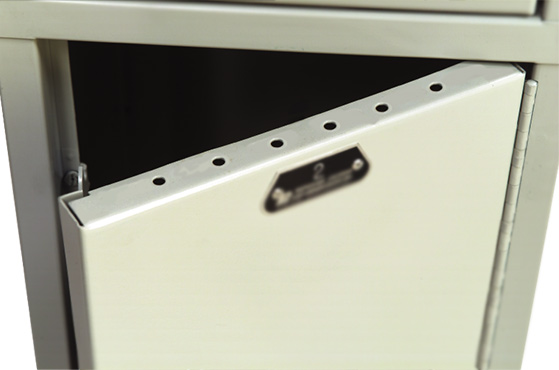

Concealed Ventilation at top and bottom door flanges helps to decrease sound.
Features:
Body/Frame:
Twin-Frame all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge solid sides are integral with front vertical frame, 18 gauge solid back
Doors:
14 gauge plain doors and a full-height door stiffener are standard. Secure-Air-Flow, diamond perforated and louvered door styles are available. Continuous vertical door strike at both hinge and latch side
Handle:
Deep-drawn seamless stainless steel recessed handle
Latching:
Single-point maintenance-free quiet latching system, 11 gauge MIG welded latch
Hinges:
16 gauge continuous piano type shelves: 16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
Hooks:
2-single hooks and 1-double hook is standard. 1-double hook only for triple tier 1-double and 1-single hook for 9" wide openings 30" and higher
Warranty:
Lifetime
Standard:
18 gauge continuous piano hinge
Standard:
3" wide 18 gauge full height door stiffener
Standard:
Concealed Ventilation at top and bottom door flanges helps to decrease sound.
