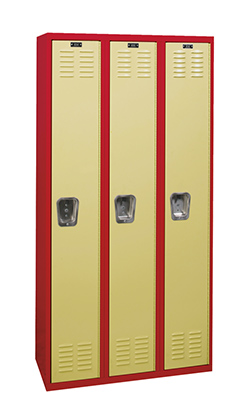

Champ Corridor Lockers

Louvered doors, solid sides, recessed handles, and all-welded make this the top choice for corridor and staff lockers.

Upgrade to AMP-1003E Elite Series lockers:

Which include a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide AMP-1003E Elite Series lockers.

AMP-1003

Standard:

Alt

18 gauge continuous piano hinge

Optional:

Alt

Slope Tops can be added to keep debris and items from collecting on top of lockers.

Standard:

Alt

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Features:

Body/Frame:
Twin-Frame all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge solid sides are integral with front vertical frame, 18 gauge solid back
Doors:
14 gauge louvered doors are standard. Plain, Secure-Air-Flow, Safety-View and louvered door styles are available, Continuous vertical door strike at both hinge and latch side
Handle:
Deep-drawn seamless stainless steel recessed handle
Latching:
12 gauge latch hooks MIG welded to frame, gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high
Hinges:
16 gauge continuous piano type
Hooks:
2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher
Shelves:
16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
Warranty:
Lifetime
AMP-1003

Standard:

Alt

18 gauge continuous piano hinge

Optional:

Alt

Slope Tops can be added to keep debris and items from collecting on top of lockers.

Standard:

Alt

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Upgrade to Elite:

Elite

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide Elite doors. 18” and 24” all-welded lockers are only available in Elite Series.

Color Selection:
See our Color Info Page for more information about colors.Color Info

Browse Photos

Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
sizes: Single Tier Double Tier Triple Tier
Widths 9", 12", 15", 18", 24" 9", 12", 15", 18", 24" 9", 12", 15", 18", 24"
Depths 12", 16", 18", 22" 12", 16", 18", 22" 12", 16", 18", 22"
Opening Heights   24", 30", 35" 20", 24"
Column Heights 36", 48", 60", 72" 48", 60", 72" 60", 72"
